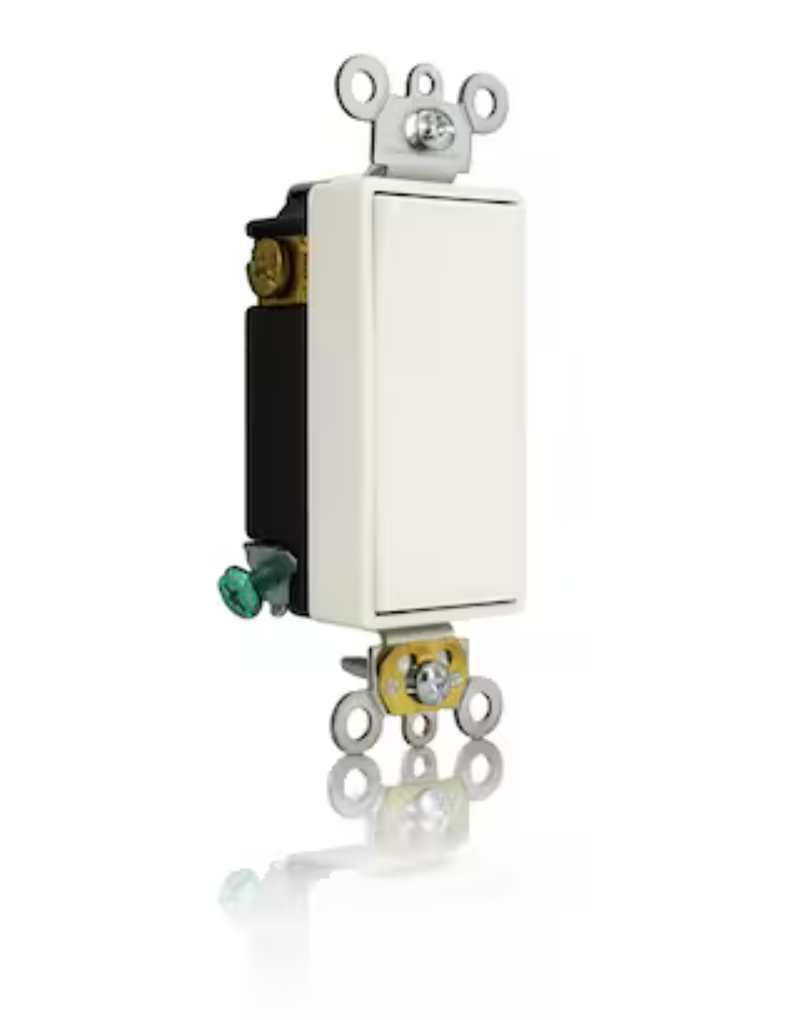

Somfy Maintained White Paddle Wall Switch 120v AC

The Somfy Maintained White Paddle Wall Switch 120v AC is a premium, hardwired, Single Pole Double Throw (SPDT) decorator switch. It is engineered to provide constant, direct wired control for a Somfy standard 4-wire directional AC tubular motors, such as those used in motorized draperies, roller shades, security shutters, and rolling doors.

Product Specifications

Switch Type: Maintained action (the paddle clicks and stays locked into position when pressed up or down, allowing the motor to run continuously until it reaches its internal limit stop or the user manually clicks the paddle back to the center "off" position).

Electrical Load: 120V AC input/output.

Control Configuration: Single channel, individual motor control.

Physical Profile: Sleek, modern Decora-style/Designer paddle profile designed to mount flush inside standard single-gang electrical junction boxes.

Compliance: Full UL CE certifications for strict safety compliance in residential and commercial spaces.

Packaging Note: Ships as the standalone switch module only; matching decorative face cover plates are not included.

Functional Design Highlights

Convenience-Focused Operation: Unlike a momentary switch (which requires the user to constantly press and hold the button), a maintained switch allows for walk-away convenience. You can tap the paddle once, walk away, and the drapery track or rolling shade will automatically drive until it finishes its cycle.

Wiring Interface: Features explicit rear terminal wiring nodes to cleanly accept standard line-voltage hot, neutral, directional open (up/direction 1), and directional close (down/direction 2) lines coming from a Somfy 4-wire AC motor.
