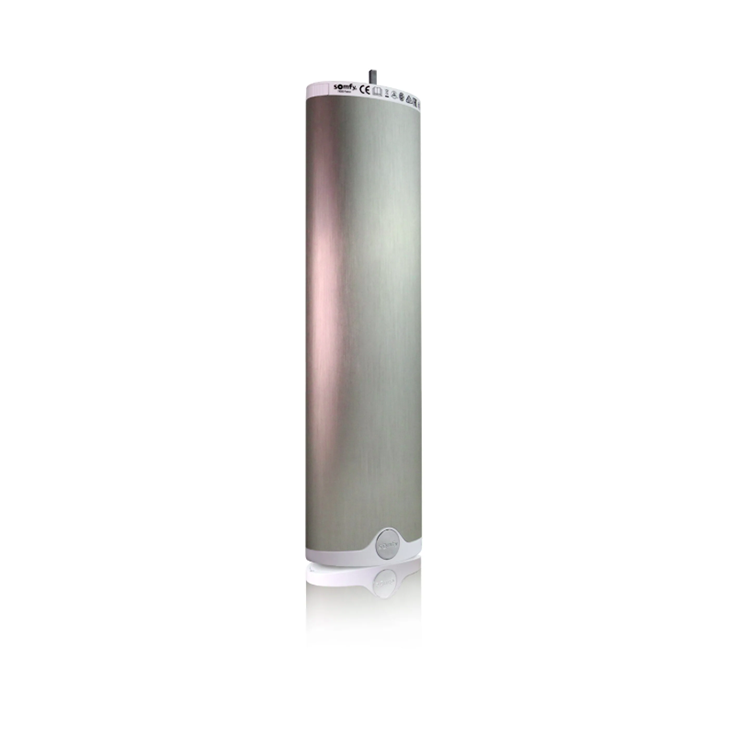

Glydea ULTRA 60 Motor DCT with 10' Plug

Somfy Glydea ULTRA 60 DCT Moptor with 10' Plug 1246117 is a high-capacity, line-voltage motorized drapery track system engineered with a standard molded NEMA 3-wire plug for convenient, plug-in installation into any 110V wall outlet. It features DCT (Dry Contact Technology), meaning it relies on a dedicated RJ12 connector port to execute low-voltage open, close, and stop commands issued by wired wall switches, contact-closure relays, or third-party home automation controllers.
It is fully validated for use with selected Forest Group Drapery Track Systems and The Bradley Collection motorized track systems.

It is fully validated for use with selected Forest Group Drapery Track Systems and The Bradley Collection motorized track systems.

Product Specifications

Weight Capacity: Features an ultra-strong traversing capacity that easily handles massive, heavy-duty fabric panels up to 132 lbs (60 kg). Two motors can also be coupled in tandem to support heavy layouts up to 220 lbs (100 kg).

Track Length Capabilities: Drives a continuous, high-performance belt-driven track span up to 36 feet (11 meters) long.

Power Connections: Plugs natively into traditional outlets using an integrated 10-foot (3 meter) power cord pulling 120V AC (50/60 Hz) with a standard 1.0 Amp power rating.

Acoustics Speed: Operates at a whisper-quiet noise level of 38 dBA when programmed to its slower "silent mode". Linear speed is adjustable between 4.9 to 7.86 inches per second.

Dry Contact Logic: Uses a low-voltage 3.3V DC control circuit via its RJ12 port. It can easily be connected to external conversion modules to enable communication with RS-485, Z-Wave, or Zigbee smart home networks.

Curtain Styles: Fully compatible with classic Pinch Pleat hooks, and RippleFold carrier layouts (at 80%, 100%, and 120% fullness ratios).

Functional Design Highlights.

Touch Motion Manual Override: A quick, gentle manual tug on the curtain panel automatically engages the motor to complete the cycle. In the event of a power outage, the internal electromagnetic clutch releases so you can safely pull the draperies entirely by hand.

Auto Limit Setting: End stops configure themselves automatically on the first operational cycle when the motor senses physical tension at the edges of the track.

Includes Somfy 5 year warranty.
