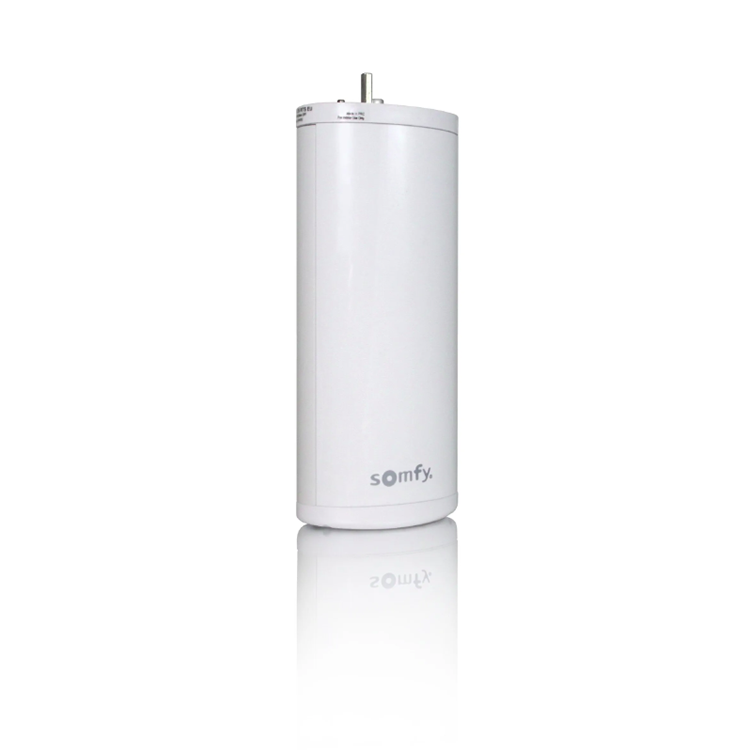

Irismo 35 (Mini DC) RTS Motor (Includes 24V DC Power Supply)

The Somfy Irismo 35 (Mini DC) RTS Motor with 24V DC Power Supply 1003004 is a premium low-voltage, wirelessly controlled motorized drapery solution. Operating on Somfy’s proprietary Radio Technology Somfy (RTS), it plugs directly into standard wall outlets using the included external transformer, providing a seamless plug-and-play setup that eliminates the cost of a certified electrician.

It is fully validated for use with selected Forest Group Drapery Track Systems and The Bradley Collection motorized track systems.

Product Specifications

Weight Capacity: Safely moves light- to medium-weight drapery panels weighing up to 77 lbs (35 kg)

Track Length Capabilities: Runs smoothly across straight, continuous, or custom-bent track profiles measuring up to 32 feet (9.7 meters).

Low-Voltage Power Supply: Packaged with a standard 24V DC / 2.0 Amp low-voltage plug-in adapter featuring an extended power cord to reach wall outlets easily

Acoustic Linear Speed: Operates at a quiet noise level of 41 dBA with an average adjustable traversing speed between 4.9 and 7.86 inches per second.

Curtain Styles: Natively handles Pinch Pleat, and RippleFold headings (at 80%, 100%, and 120% fullness ratios).

Functional Design Highlights

RTS Wireless Protocol: Connects directly to the broad ecosystem of Somfy wireless controllers, including the Situo hand-held remotes, DecoFlex wall switches, and sun or wind sensors.

Voice App Controls: Integrates natively with smartphone and tablet apps via the Somfy TaHoma Switch Gateway Hub. Adding a TaHoma interface unlocks voice commands through Amazon Alexa or Google Home.

Touch Motion Manual Override: Allows you to trigger automated operation simply by tugging lightly on the curtain fabric. If power fails, a manual override clutch isolates the internal gears so you can hand-draw the curtains without causing track damage.

Automatic End Limits: End stops calibrate themselves automatically when the motor detects physical resistance at both edges of the drapery rail.

Curtain Styles: Fully compatible with classic Pinch Pleat hooks, and RippleFold carrier snap tape (at 80%, 100%, and 120% fullness ratios).

Includes a Somfy 5 year warranty.
