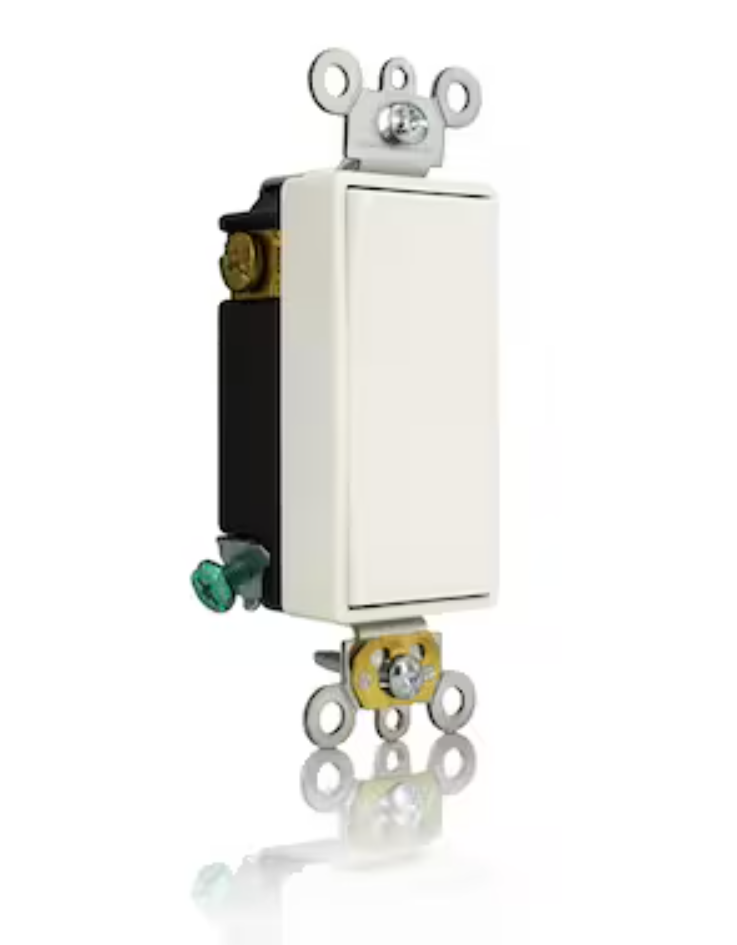

Somfy Momentary White 120v AC Paddle Wall Switch

The Somfy Momentary White 120v AC Paddle Wall Switch is a premium, hardwired, Single Pole Double Throw decorator switch. It is engineered to provide precise, direct wired control for standard 4-wire directional Somfy AC tubular motors, such as those used in motorized draperies, roller shades, security roll shutters, and rolling doors.

Product Specifications

Switch Type: Momentary action (the motor operates only while the user actively presses and holds the paddle up or down; it springs back to center when released.

Electrical Load: 120V AC input/output

Control Configuration: Single channel, individual motor control.

Physical Profile: Sleek, modern Decora-style/Designer paddle profile designed to mount flush inside standard single-gang electrical junction boxes.

Compliance: Full UL & CE certifications for strict commercial and residential safety standards.

Packaging Note: Ships as the standalone switch module only; matching decorative face cover plates are not included.

Functional Design Highlights

Safety-Critical Operation: While maintained switches (which stay clicked into place) are popular for automated indoor shades and drapery tracks.

Clean Wire Termination: Built with standard rear terminal wiring nodes to cleanly accept standard line-voltage hot, neutral, directional open (direction 1), and directional close (direction 2) lines coming directly from a Somfy 4-wire motor.
