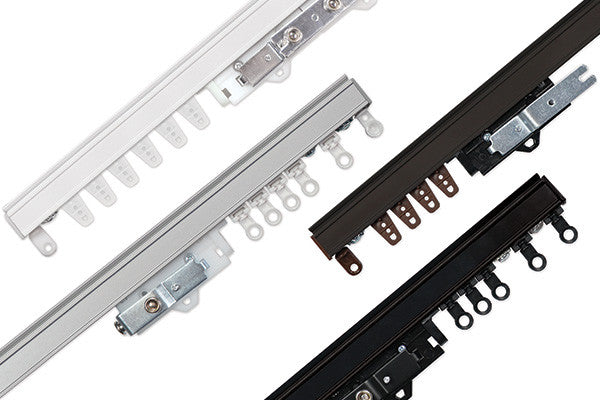

Kirsch Architrac 94003 Baton-Draw Rod

The Kirsch Architrac Series 94003 is the industry-standard, commercial-grade architectural track designed exclusively for heavy-duty baton or hand-draw drapery systems. Extruded from resilient 6063T5 aluminum alloy, this low-profile system measures ¾" wide by 1" high, this premium track system completely eliminates hazardous pull-cords, making it the ultimate child-safe and pet-friendly choice for luxury homes, residential spaces, hotels, and modern commercial spaces.

Product Specifications

Weight Capacity: Supports up to 2.5 lbs per linear foot, topping out at a maximum fabric limit of 80 lbs (36 kg).

Track Length Span: Built to custom measurements from 24 inches up to a maximum contiguous single-track layout of 32 feet (360").

Drapery Fabric Formats: Adaptable for traditional Pinch Pleat headers, modern Ripplefold™ snapshots, and Grommeted draperies.

Available Finishes: Anodized Aluminum, White, Bronze, and Black.

Functional Design Highlights

Draw Stack Layouts: Available in Right One-Way, Left One-Way, or Center Split-Draw (Two-Way) configurations.

High-Performance Carriers: Custom assembled with heavy-duty 16mm ball-bearing slide carriers for pleated fabrics, or wheeled performance pendants for structured Ripplefold layouts to ensure fluid manual movement across long track spans.

Lead Master Drivers: Utilizes wheeled overlap master carriers to create zero-light overlap seams when the draperies are fully drawn closed.

Baton Compatibility: Designed to hold rigid fiberglass, steel, or heavy PVC batons attached directly via specialized screw eyelets into the lead master arm to minimize fabric handling and prevent tearing.

Note that tracks exceeding 93 inches in total length are generally shipped in spliced interlocking sections to avoid oversized shipping surcharges.
