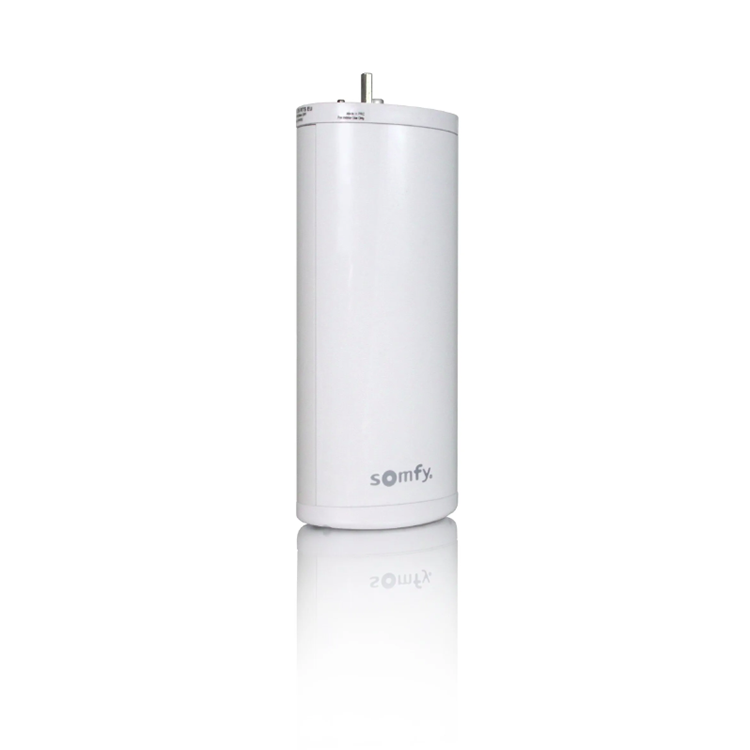

Irismo 35 (Mini DC) DCT Motor (Includes 24V DC Power Supply)

The Somfy Irismo 35 (Mini DC) DCT Motor is a premium low-voltage, wired motorized drapery track solution designed for smooth, plug-and-play installation without needing a certified electrician. Unlike the RTS wireless models, this DCT (Dry Contact Technology) unit is explicitly engineered to interface with hardwired home automation systems, third-party control hubs, or basic wired wall switches using a low-voltage dry contact control circuit.

It is fully validated for use with selected Forest Group Drapery Track Systems and The Bradley Collection motorized track systems.

Product Specifications

Weight Capacity: Safely traverses light- to medium-weight drapery fabric panels up to 77 lbs (35 kg)

Track Length Capabilities: Operates smoothly across straight or curved continuous track layouts up to 32 feet (9.7 meters) with a maximum of 2 track junctions.

Power Supply: Standard package includes a specialized plug-in 24V DC / 2A external power supply adapter featuring a generous 13.2-foot (4 meter) cable.

Control Wiring: Utilizes an integrated RJ12 connector port operating on a safe 5V DC control circuit for its dry contact commands.

Acoustics Speed: Operates at a whisper-quiet noise level under 44 dBA with an adjustable average linear speed between 4.9 to 7.86 inches per second (12.5 to 20 cm/s)

Functional Design Highlights

Dry Contact Control: Designed for flawless integration with dry contact automation switchboards, third-party smart hubs, and wall-mounted relay triggers.

Curtain Styles: Fully compatible with classic Pinch Pleat hooks, and RippleFold carrier snapo tape (at 80%, 100%, and 120% fullness ratios).

Touch Motion: Allows you to lightly tug on the curtain panel by hand to automatically trigger the 24V motor to complete the open or close cycle.

Manual Override: Keeps the interior functional during power outages by allowing users to pull the drapery by hand without introducing gear or track friction.

Automatic End-Limits: The motor establishes its open and closed limit stops automatically on its initial calibration runs by detecting physical track ends.
